NU-BOLT 10 NPS 3/4" BOLT NG GALVANISED 4 NUTS IROD WHITE C/W UBT0205, ROD0404, FAS0048

QUICK SHIP AVAILABLE
Quebec Online Orders Not Available

Order by:

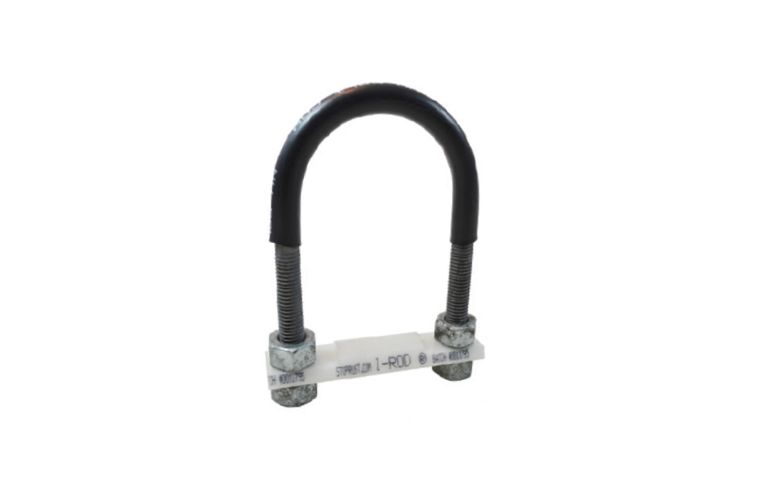

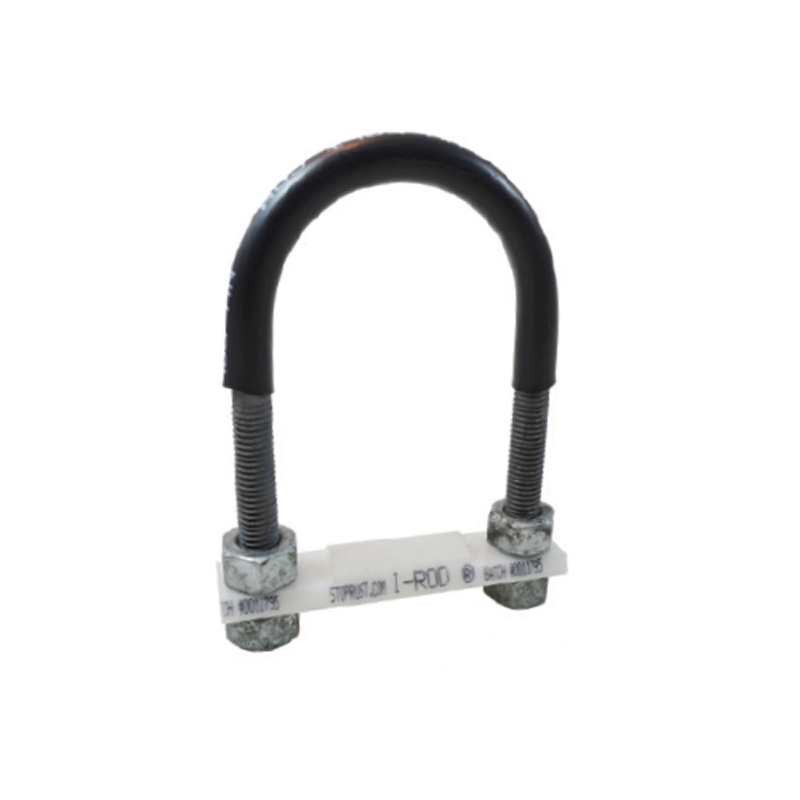

Nu-Bolt assembly combines our half-round I-Rod support with a heat-shrink-coated U-bolt to provide long-term service in the harsh operating environments.

Complete specifications for I-Rod Material, U-bolts and the Polyolefin heat shrink used in Nu-Bolt assembly are available on our Data sheet.

Non-gripping Nu-bolts are designed to accommodate axial movement of the pipe by having a nut or washer on top and bottom. The benefit of this arrangement is a better-secured piece of I-Rod Material for pipes that need to move or slide on the support.


I-ROD MATERIAL

  • I-Rod Material is a durable half-round thermoplastic.
  • High compressive strength, Low Creep
  • I-rod White - Temperature Ranges -110°C - 83°C
  • UV stable

POLYSHRINK

  • Polyshrink is a UV-stable, cross-linked polyolefin applied over the shank of the U-bolt to protect the pipe's paint during installation.
  • Standard: up to 110°C

HOT-DIPPED GALVANISED STEEL

  • Carbon steel with Galvanized finish on U-Bolt and 4 nuts.
