BONDS - DECOUPLERS - CONNECTORS

• Material: #110 Copper
• Plating: Nickel Electroplated
• Thickness: .095"

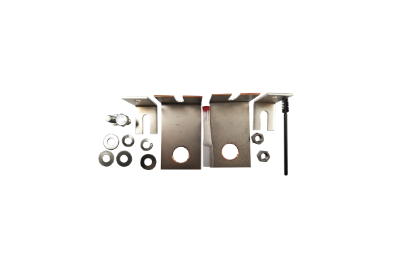

INCLUDED IN THIS KIT

• Flange Brackets
• Nuts, Bolts, Washers

• Material: #110 Copper
• Finish: Nickel Electroplate
• Thickness: 0.0625"

• Solid-state, fail-safe design
• Adequate voltage threshold of 45V to avoid nuisance switching
• Variable threshold design blocks transients
• Meets NESC 97D2 for isolation
• High impedance to AC and DC current when in the blocking mode

Note: Due to the installation process for these devices, VTNI units are sold only to power utility companies, or their distributors.

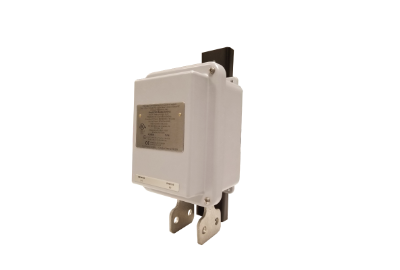

• Compact, lightweight package
• Range of AC Fault Ratings
• Higher Blocking Voltage than Polarization Cells
• UL and C-UL Listed for Grounding Electrical Equipment
• UL, C-UL Listed for Class I, Division 2 Locations
• Certified by UL/DEMKO for Meeting ATEX Directive for Zone 2; CE Marked
• Certified by UL for IECEx Zone 2 locations
• Submersible Design

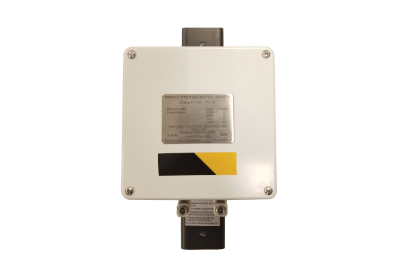

• Utilizes the same proven and reliable design of the PCR
• UL, C-UL listed explosion-proof design: unique to the industry
• Listed for use in Division 1 & 2 areas, Groups B, C, D
• IECEx certified for Zone 1 - UL
• ATEX certified for Zone 1 - UL/DEMKO
• Listed as an "effective grounding path" per the NEC and CSA grounding standards

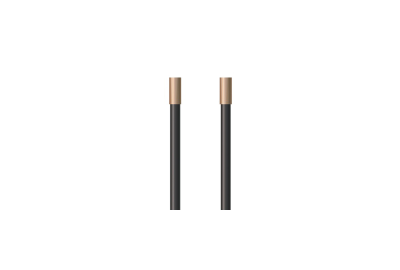

• Custom lengths are available for an additional fee per foot
• Specify the units for length "X" (e.g., inches, mm, etc.).
• Each PCRH requires two conductors. If only one length is specified, both conductors will be furnished to the same length

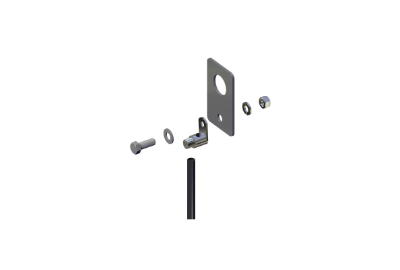

• Metal Type: #110 Copper
• Plating: Nickel Electroplated
• Thickness: .125

INCLUDED IN THIS KIT:

• Adapter Plate
• TefGel corrosion inhibitor

• Metal Type: #110 Copper
• Plating: Nickel Electroplated
• Thickness: .125

INCLUDED IN THIS KIT:

• Adapter Plate
• TefGel corrosion inhibitor

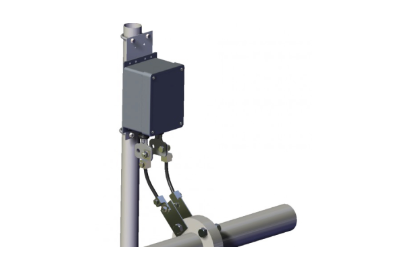

• Metal Backplate: Stainless Steel*
• U-Bolts: Stainless Steel
• 48" Pipe: 2" Schedule 40 Galvanized Steel
• Threaded Pipe Flange: Galvanized Steel
• 5/8" x 12" Bolts: Galvanized Steel

ADDITIONAL RECOMMENDED ACCESSORIES

• Adaptor Plate Kit
• Conductor Kit

• Custom lengths are available for an additional fee per foot
• Specify the units for length "X" (e.g., inches, mm, etc.).
• Each PCRH requires two conductors. If only one length is specified, both conductors will be furnished to the same length
