CSCL - Products

  • CONDUCTIVE COATING WATER BASED 18.9 LITRE PAILS DAC-ANODE WB

    Dac-Anode® is the original non-destructive corrosion prevention solution for steel reinforced concrete. Dac-Anode® has decades of proven service throughout the world, and provides existing structures with a new lease of life, at minimal cost to owners and operators. Dac-Anode® forms the anode component of a cathodic protection system, which is designed to distribute corrosion halting current to steel reinforcement. However, Dac-Anode® is unique because it comes as a single component coating rather than an expensive alloy mesh. This means that Dac-Anode® can be applied to the surface of the concrete, rather than needing to be embedded like legacy anode systems, saving time and money while still providing the same level of protection.

    Code: D85WB5
    Available For QUICK SHIP
    More Info
  • GROUND CLAMP EAGLE STEEL FOR 2" PIPE DWG A-4713-01 REV 1

    Code: GC2
    Available For QUICK SHIP
    More Info
  • GROUND CLAMP EAGLE STEEL FOR 3" PIPE DWG A-4713-02 REV 0

    Code: GC3
    Available For QUICK SHIP
    More Info
  • GROUND CLAMP EAGLE STEEL FOR 4" PIPE DWG A-4713-03-R1

    Code: GC4
    Available For QUICK SHIP
    More Info
  • GROUND CLAMP EAGLE STEEL FOR 6" PIPE

    Code: GC6
    Available For QUICK SHIP
    More Info
  • GROUND CLAMP EAGLE STEEL FOR 8" PIPE

    Code: GC8
    Available For QUICK SHIP
    More Info
  • GPSI2-50 GPS INTERRUPTER 50A IN PLASTIC STORM BOX

    • AC & DC interrupter circuits are electrically isolated from rectifier power.

    • Housed in a polycarbonate waterproof enclosure for outdoor use.

    • Continuous synchronization with GPS.

    • High accuracy internal real-time clock maintains interruption in the event of loss of satellite signal.

    • Multiple fixed program setup ensures foolproof operation and minimal setup time.

    • Interrupt D.C. up to 50 Amps at 100 Volts.

    • Interrupt A.C. up to 15 Amps at 240 Volts.

    Code: GPSI250
    Available For QUICK SHIP
    More Info

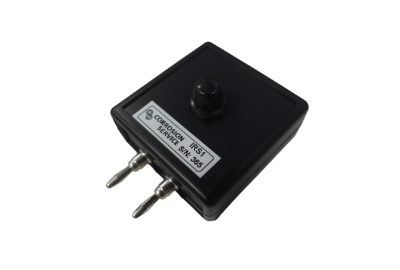

  • INSTRUMENT RESISTANCE SPOILER

    The “normally-open” switch allows the meter to display voltage readings in normal operation, but reduces meter input impedance by a factor of 10 when the push button is depressed. If there is ±5% (or more) difference in the display reading, then there is a contact resistance error that requires correction.

    Using the IRS-1 during potential surveys enhances performance by reducing the number of inaccurate readings. True potential values may be calculated to provide ‘true’ values in areas having a very dry, frozen, or high resistivity soil.

    Code: IRS1
    Available For QUICK SHIP
    More Info
  • PORTABLE RECTIFIER TRU MODEL 1 OUTPUT 110VDC 10ADC 925W

    The Corrosion Service Portable Transformer Rectifier Unit (TRU) is one of the most essential tools in the cathodic protection technician’s tool box. The TRU allows a variety of surveys to be performed where they would not otherwise be possible by supplementing, mimicking, or replacing permanent cathodic protection installations. Common applications include coating holiday (DC voltage gradient) and current requirement surveys. The TRU provides high output voltage, allowing the generation of significant test currents even under high resistivity soil conditions. The unit is air-cooled with a continuously variable variac control and is conveniently fitted with an interrupter interface. Standard units are supplied with LED displays in a painted carbon steel cabinet, which is rugged enough to withstand demanding field conditions.

    Code: PCS11008120N4
    Backordered
    More Info
  • SWITCHING CURRENT CONTROLLER E-PAK SCC25-1 SN

    Code: SCC251
    Available For QUICK SHIP
    More Info
  • TOUCH PANEL RECTIFIER - SINGLE PHASE

    • Instant on and off for interruption and does not spike common with legacy automatic rectifiers
    • Up to 93% unit efficiency
    • Multiple unit control utilizing one touch screen display, utilizes master slave operation
    • Unlimited number of reference electrodes can be monitored
    • Can be operated in Constant Current, Constant Voltage or Potential Control
    • Single or Three Phase



    Code: UCC2A
    Backordered
  • ZERO RESISTANCE AMMETER PORTABLE BATTERY STANDARD RANGE CSCL ZRA

    The amount of current that is discharged off the validation coupon is typically very small and measurement tools require micro amp resolution. Conventional ammeters are inadequate for reading small currents since the loading effect of the meter adds an error value to the reading. The ZRA overcomes this loading effect and provides an extremely precise and accurate indication of protective current.

    Code: ZM3P
    Available For QUICK SHIP
    More Info
