RGHD 16" PIPE - 237.5 SQFT 4.7'x50' - 81LB PER ROLL ROCKGUARD - RG237

Quebec Online Orders Not Available

Order by:

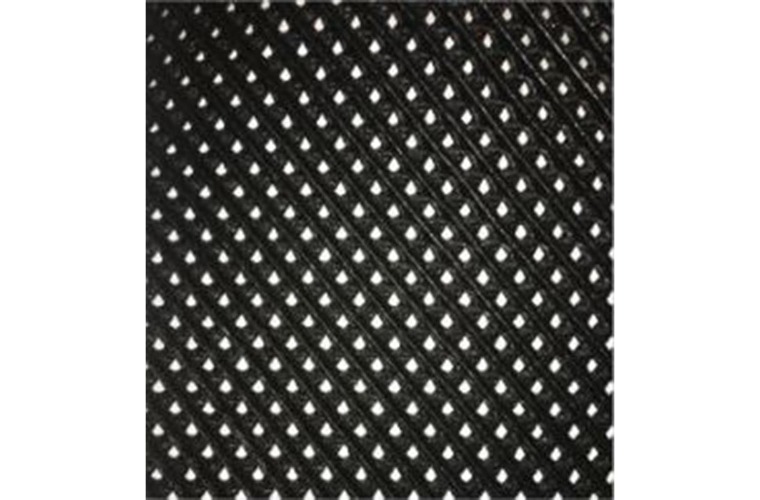

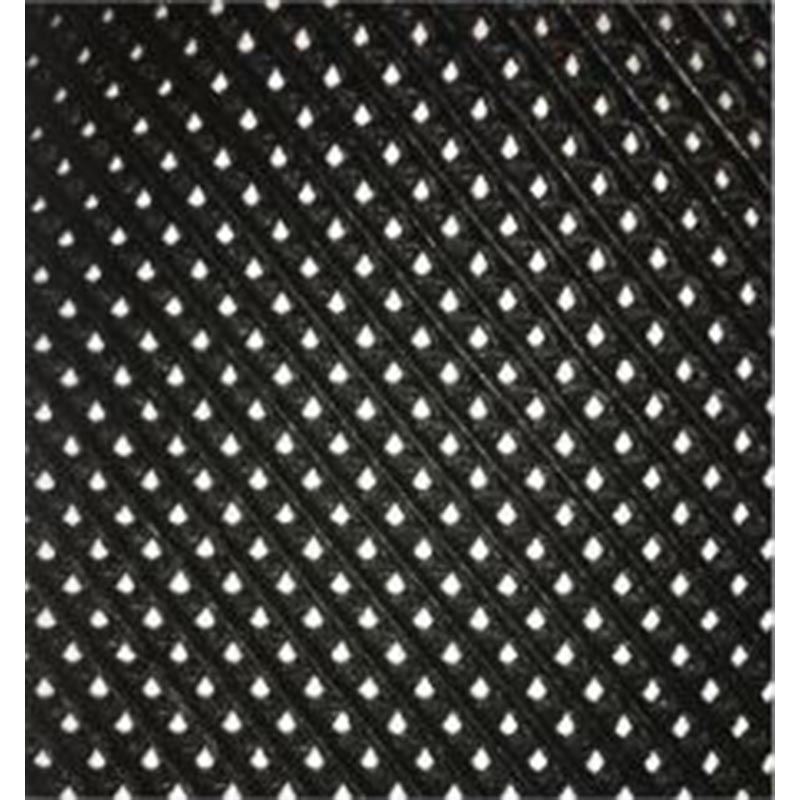

This Pipeline Rockguard Protection Mesh is an 11 mm, three dimensional bi-planar extruded diamond structured mesh rock shield manufactured from polyethylene.
Lightweight and ergonomically correct, ROCKGUARD® HD offers a consistent thickness throughout the width of each roll or pad to provide full protection to your pipeline during and after backfill operations.


RockGuard® HD is available in rolls and pads

• Rolls are utilized for pipeline diameters up to 24” with a width equal to the pipeline circumference plus a minimum 6” overlap

• Standard rolls are 50’ in length and do not exceed 105 pounds in weight. This ergonomically correct light weight is a safety benefit and minimizes the risk of injury at the jobsite

• Pads are utilized for pipelines with diameters greater than 24” with a width equal to the pipeline circumference plus a minimum 6” overlap

• Standard pad lengths are 72”

Interactive Product Catalog


• Does not interfere with cathodic protection - It has Holes to allow current flow.

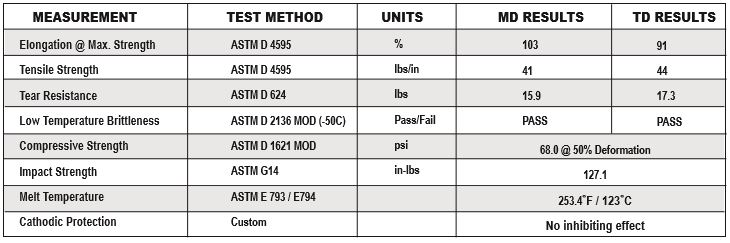

• Excellent impact and compressive strengths

• Initial protection during handling and backfill operations

• Long term protection from geologic movement, pipeline vibration and future excavation

• Consistent 11 mm thickness throughout the roll or pad to provide full protection

• Uniform open mesh with channels designed to resist wicking and prevent water storage next to the pipe

• Chemically inert and will not rot

• Effective in all climates

• Flexible for easy handling even in extremely low temperatures

• Ergonomically correct light weight minimizes risk of injury and allows for quick, efficient installation

• Custom sized rolls and pads for every pipeline diameter


  • Check the Rock Shield on arrival.
  • Store Rock Shield underneath tarps to protect from oil, dirt, and sunlight.

 Installation Instructions

  • Rock Shield rolls or pads shall be affixed to pipe utilizing non-metallic bands of ¾” wide filament tape.
  • Rock Shield shall completely encircle the pipe with a minimum overlap of 6 inches.
  • Overlap shall be located at the bottom radius (6 o’clock position).
  • Roll to roll and pad to pad overlap shall be a minimum of 2 inches.
  • Back-fill should be “shaded” into the trench during back-fill procedure. Do not dump back-fill directly on protected pipe.
  • Follow manufacturer’s recommendations.
