RGHD 42" PIPE - 80.5 SQFT 11.5'x7' - 27LB PER ROLL ROCKGUARD 7' PAD - RG2F802

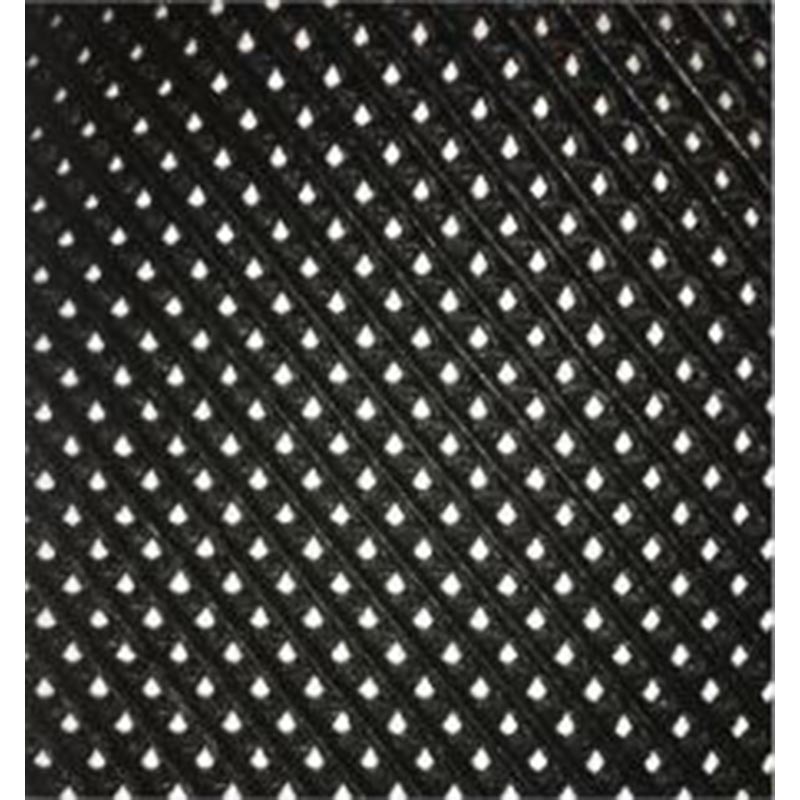

This Pipeline Rockguard Protection Mesh is an 11 mm, three dimensional bi-planar extruded diamond structured mesh rock shield manufactured from polyethylene.
Lightweight and ergonomically correct, ROCKGUARD® HD offers a consistent thickness throughout the width of each roll or pad to provide full protection to your pipeline during and after backfill operations.
RockGuard®HD is available in rolls and pads
• Rolls are utilized for pipeline diameters up to 24” with a width equal to the pipeline circumference plus a minimum 6” overlap
• Standard rolls are 50’ in length and do not exceed 105 pounds in weight. This ergonomically correct light weight is a safety benefit and minimizes the risk of injury at the jobsite
• Pads are utilized for pipelines with diameters greater than 24” with a width equal to the pipeline circumference plus a minimum 6” overlap
• Standard pad lengths are 72”
