Various applications and options

Easybond Pin Brazing is ideally suited for many applications including continuity bonding between pipes, across flanges, connection of cathodic protection test and current carrying cables and connection of bracelet galvanic anodes etc.

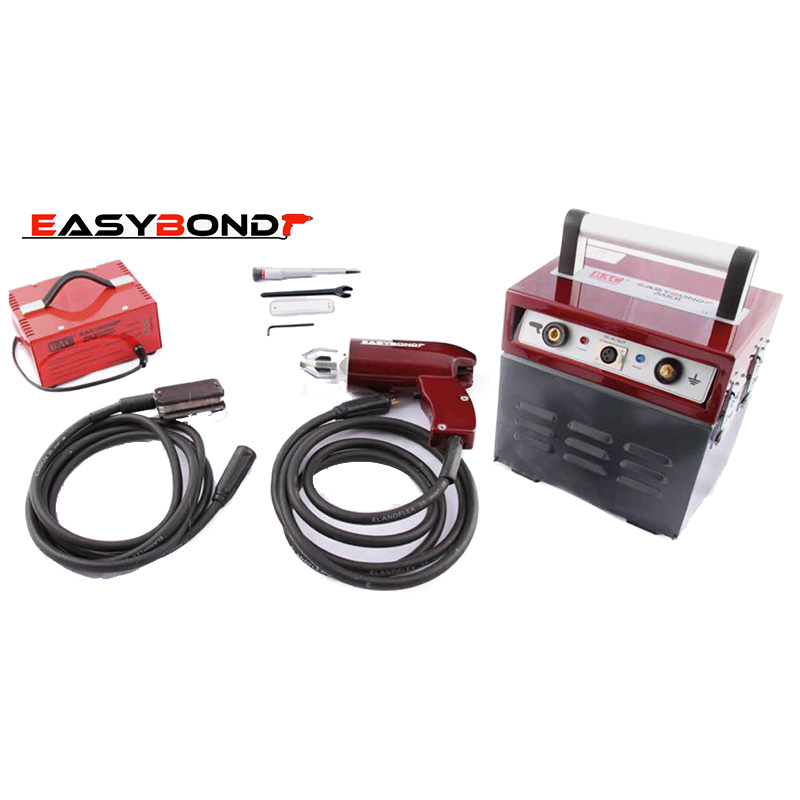

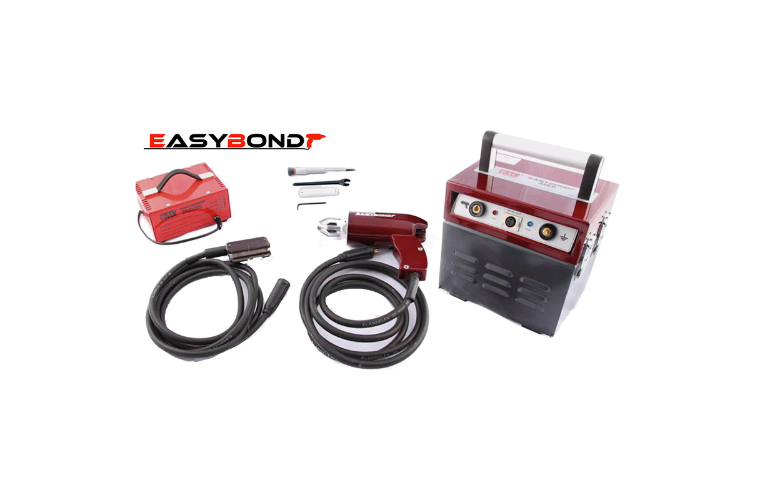

The Easybond MKII equipment is very robust, easy to operate, easy to maintain and ideal for on site works.

The Easybond Pin Brazing Process

The Easybond MKII is powered by a 36V DC battery pack (or suitable welding generator when using the generator gun) capable of delivering 240A for use with BAC fused brazing pins, ceramic ferrules and cable lugs.

With the earth device in place the gun trigger is depressed and after approximately 1.5 to 2 seconds the circuit is mechanically broken as the fuse wire breaks, and the brazing pin is held into the molten pool of brazing alloy that rapidly cools into a homogenous and very strong connection.

Benefits

• Speed of connection: Takes around 60 seconds for 1 connection.
• Low Temperature: The low meting point (650°C) and short brazing time minimise the thermal effects on the steel.
• All Weather: Pin brazing can be carried out in the wind rain or snow and damp conditions pose no problem.
• Easy to use: Operators can be trained effectively to operate and maintain the equipment in less than one hour.
• Versatile: Connections can be made at any orientation on a pipe.
• Maintenance: Huge range of spare parts means easy onsite maintenance.
