CUSTOM CONFIGURED AC COUPON

. .
AVAILABLE
Quebec Online Orders Not Available

CUSTOM CONFIGURED - ONLY REGISTERED USERS CAN ORDER

We at Corrosion Service appreicate that each user requires special configured products to meet their application requirments and to accomidate this, we allow custom ordering for this product. Please provide the folliwing in the comments filed when ordering other products we will provide a customized quote for this item.

ACC LENGTH - xx METERS OR xx FEET

Due to an unprecedented level of public awareness towards new and existing energy infrastructure, finding the space required to build buried pipelines and overhead power lines is becoming increasingly difficult. The logical solution is to utilize shared right of ways (ROW). However, modern pipelines buried in close proximity high voltage overhead power lines have the potential to pick-up AC current, causing both a public safety risk due to electric shock, and a corrosion risk due to AC corrosion. This is why Corrosion Service developed a class leading AC Coupon, which allows pipeline operators to monitor induced AC current density, and install mitigation measures in areas where the risk is highest.

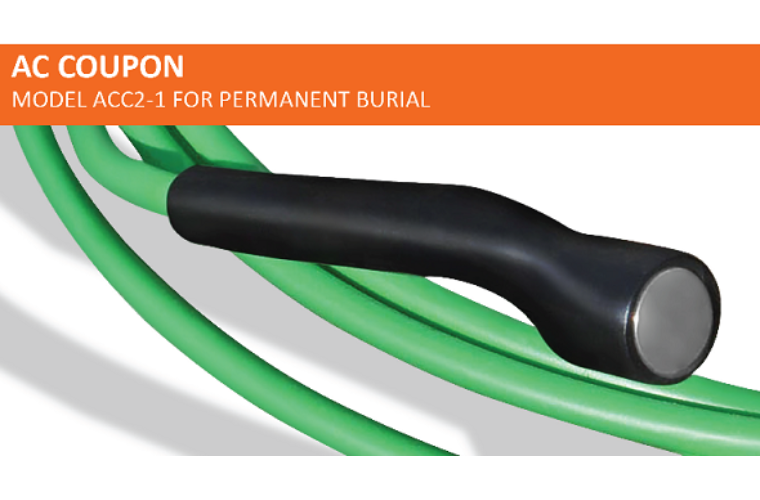

Suitable for use with both new build and existing structures, the ACC2-1 is buried adjacent to the target pipeline. Installation can be completed quickly and efficiently, since the ACC2-1 is small enough to be positioned within a hand excavated or hydro-vac hole. Once a connection to the pipeline is established, AC current flow is measured with a standard multimeter to give a quick and accurate indication of induced current on the pipeline. These recorded values are sufficient to give operators the information they need, to determine whether AC mitigation is required and where it is required. Our strategically placed distribution hubs can dispatch in-stock ACC2-1 probes at short notice to any project in the world.

Features and Benefits

  • Reduces owner/operator risk by allowing regular monitoring and preemptive action, to mitigate potentially hazardous AC current.
  • Validates the effectiveness of existing mitigation measures and provides regulators with historical and current operating data.
  • Cost-effective, easy hydro-vac or hand excavation installation in native backfill.
  • Compatible with remote monitoring and data recording hardware.
  • Suitable for installation with most new and existing test stations.

Product Data Sheet
