NU-BOLT 6 NPS 5/8" BOLT GALVANISED 4 NUTS IROD WHITE C/W UBT0029, ROD0074, FAS0047

. .
AVAILABLE
Quebec Online Orders Not Available

Order by:

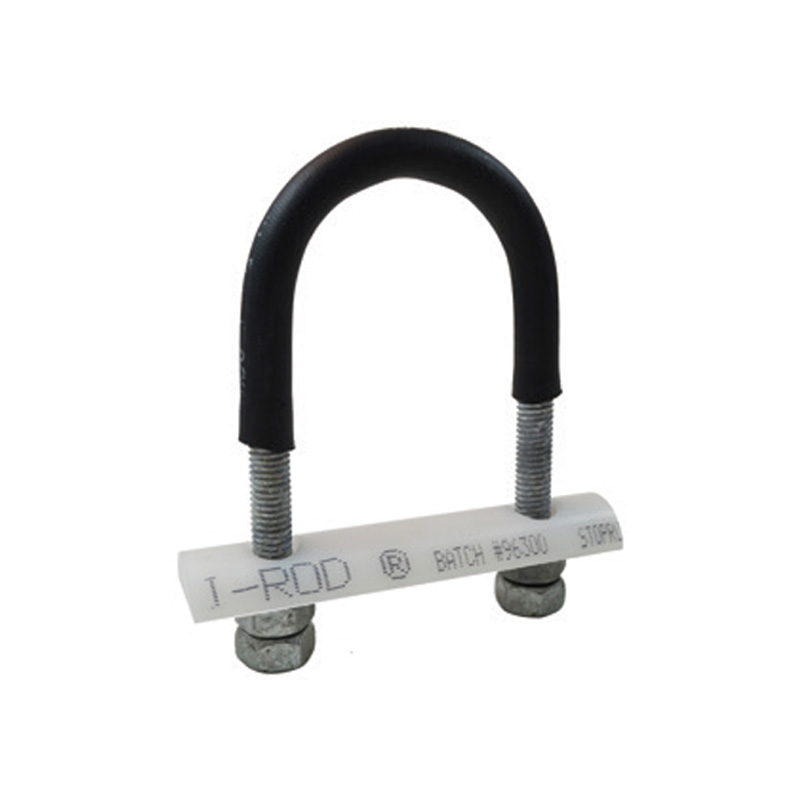

Nu-Bolt assembly combines our half-round I-Rod support with a heat-shrink-coated U-bolt to provide long-term service in the harsh operating environments. Complete specifications for I-Rod Material, U-bolts and the Polyolefin heat shrink used in Nu-Bolt assembly are available on our Data sheet.

I-ROD MATERIAL

  • I-Rod Material is a durable half-round thermoplastic.
  • High compressive strength, Low Creep
  • I-rod White - Temperature Ranges -110°C - 83°C
  • UV stable

POLYSHRINK

  • Polyshrink is a UV-stable, cross-linked polyolefin applied over the shank of the U-bolt to protect the pipe's paint during installation.
  • Standard: up to 110°C

HOT-DIPPED GALVANISED STEEL

  • Carbon steel with Galvanized finish on U-Bolt and 4 nuts.

I-Rod Product Catalogue

I-Rod Technical Data Sheet

Nu-Bolt Technical Data Sheet
