ANODE FLEX

  • LONG-LINE FLEXIBLE ANODE FOR IMPRESSED CURRENT CP ANODEFLEX AFLX-1500-01

    • AnodeFlex 1500 is a long-line, flexible, cable-like anode.
    •  It is placed in continuous close proximity to the target structure & provides uniform distribution of CP current .
    • Unique construction allows current to flow long distances down the center conductor, while allowing sufficient cathodic protection current to continuously pass through the conductive polymer all along the length of the anode.
    • Maintains steel-to-soil "instant-off" potential in the required window of -850mv (-950mv if SRB’s present) and -1200mv.
    • AnodeFlex 1500's efficiency prevents over-voltage problems such as hydrogen generation and associated rapid coating disbondment.
    • Interference from other structures and stray currents are virtually eliminated.
    • AnodeFlex 1500 can often be installed as part of a system rehabiliation on pipelines with decayed coatings
    • Above ground storage tank bottoms and buried tanks can be more effectively protected from corrosion using this continuous, close proximity anode system.
    Code: 10570
    Available
    More Info

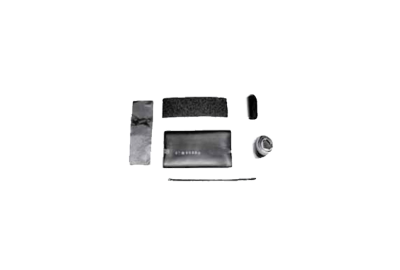

  • ANODEFLEX SPLICE KIT INLINE AFLX 1500-01-SPLICE BERRY GLOB

    Code: 10585
    Available
    More Info
